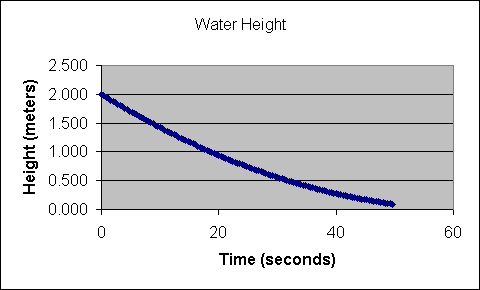

Continuity Equation (Flow varies with height of tank)
						Orifice Dia	0.100	meters
	Time					Orifice Area	0.008	sq meters
Begin Incr	0	seconds				Tank Dia.	1.000	meter
Interval	0.4	seconds				Tank Area	0.785	sq meters
Time	Orig. Elev	Water Vol	VELout	Qout	Volume Out	Final Vol	Final Elev
(seconds)	(meters)	(cubic m)	(m/sec)	(cms)	(cub m)	(cubic m)	(meters)
0							2.000
0.4	2.000	1.5708	6.2642	0.0492	0.0197	1.5511	1.975
0.8	1.975	1.5511	6.2248	0.0489	0.0196	1.5316	1.950
1.2	1.950	1.5316	6.1855	0.0486	0.0194	1.5121	1.925
1.6	1.925	1.5121	6.1461	0.0483	0.0193	1.4928	1.901
2	1.901	1.4928	6.1067	0.0480	0.0192	1.4736	1.876
2.4	1.876	1.4736	6.0674	0.0477	0.0191	1.4546	1.852
2.8	1.852	1.4546	6.0280	0.0473	0.0189	1.4356	1.828
3.2	1.828	1.4356	5.9886	0.0470	0.0188	1.4168	1.804
3.6	1.804	1.4168	5.9493	0.0467	0.0187	1.3981	1.780
4	1.780	1.3981	5.9099	0.0464	0.0186	1.3796	1.757
4.4	1.757	1.3796	5.8705	0.0461	0.0184	1.3611	1.733
4.8	1.733	1.3611	5.8311	0.0458	0.0183	1.3428	1.710
5.2	1.710	1.3428	5.7918	0.0455	0.0182	1.3246	1.687
5.6	1.687	1.3246	5.7524	0.0452	0.0181	1.3065	1.664
6	1.664	1.3065	5.7130	0.0449	0.0179	1.2886	1.641
6.4	1.641	1.2886	5.6736	0.0446	0.0178	1.2708	1.618
6.8	1.618	1.2708	5.6343	0.0443	0.0177	1.2531	1.595
7.2	1.595	1.2531	5.5949	0.0439	0.0176	1.2355	1.573
7.6	1.573	1.2355	5.5555	0.0436	0.0175	1.2180	1.551
8	1.551	1.2180	5.5161	0.0433	0.0173	1.2007	1.529
8.4	1.529	1.2007	5.4767	0.0430	0.0172	1.1835	1.507
8.8	1.507	1.1835	5.4374	0.0427	0.0171	1.1664	1.485
9.2	1.485	1.1664	5.3980	0.0424	0.0170	1.1495	1.464
9.6	1.464	1.1495	5.3586	0.0421	0.0168	1.1326	1.442
10	1.442	1.1326	5.3192	0.0418	0.0167	1.1159	1.421
10.4	1.421	1.1159	5.2798	0.0415	0.0166	1.0993	1.400
10.8	1.400	1.0993	5.2404	0.0412	0.0165	1.0829	1.379
11.2	1.379	1.0829	5.2011	0.0408	0.0163	1.0665	1.358
11.6	1.358	1.0665	5.1617	0.0405	0.0162	1.0503	1.337
12	1.337	1.0503	5.1223	0.0402	0.0161	1.0342	1.317
12.4	1.317	1.0342	5.0829	0.0399	0.0160	1.0182	1.296
12.8	1.296	1.0182	5.0435	0.0396	0.0158	1.0024	1.276
13.2	1.276	1.0024	5.0041	0.0393	0.0157	0.9867	1.256
13.6	1.256	0.9867	4.9647	0.0390	0.0156	0.9711	1.236
14	1.236	0.9711	4.9253	0.0387	0.0155	0.9556	1.217
14.4	1.217	0.9556	4.8859	0.0384	0.0153	0.9403	1.197
14.8	1.197	0.9403	4.8465	0.0381	0.0152	0.9250	1.178
15.2	1.178	0.9250	4.8071	0.0378	0.0151	0.9099	1.159
15.6	1.159	0.9099	4.7677	0.0374	0.0150	0.8950	1.139
16	1.139	0.8950	4.7283	0.0371	0.0149	0.8801	1.121
16.4	1.121	0.8801	4.6889	0.0368	0.0147	0.8654	1.102
16.8	1.102	0.8654	4.6495	0.0365	0.0146	0.8508	1.083
17.2	1.083	0.8508	4.6101	0.0362	0.0145	0.8363	1.065
17.6	1.065	0.8363	4.5707	0.0359	0.0144	0.8219	1.047
18	1.047	0.8219	4.5313	0.0356	0.0142	0.8077	1.028
18.4	1.028	0.8077	4.4919	0.0353	0.0141	0.7936	1.010
18.8	1.010	0.7936	4.4524	0.0350	0.0140	0.7796	0.993
19.2	0.993	0.7796	4.4130	0.0347	0.0139	0.7657	0.975
19.6	0.975	0.7657	4.3736	0.0344	0.0137	0.7520	0.957
20	0.957	0.7520	4.3342	0.0340	0.0136	0.7384	0.940
20.4	0.940	0.7384	4.2948	0.0337	0.0135	0.7249	0.923
20.8	0.923	0.7249	4.2554	0.0334	0.0134	0.7115	0.906
21.2	0.906	0.7115	4.2159	0.0331	0.0132	0.6983	0.889
21.6	0.889	0.6983	4.1765	0.0328	0.0131	0.6851	0.872
22	0.872	0.6851	4.1371	0.0325	0.0130	0.6721	0.856
22.4	0.856	0.6721	4.0977	0.0322	0.0129	0.6593	0.839
22.8	0.839	0.6593	4.0582	0.0319	0.0127	0.6465	0.823
23.2	0.823	0.6465	4.0188	0.0316	0.0126	0.6339	0.807
23.6	0.807	0.6339	3.9794	0.0313	0.0125	0.6214	0.791
24	0.791	0.6214	3.9399	0.0309	0.0124	0.6090	0.775
24.4	0.775	0.6090	3.9005	0.0306	0.0123	0.5968	0.760
24.8	0.760	0.5968	3.8610	0.0303	0.0121	0.5846	0.744
25.2	0.744	0.5846	3.8216	0.0300	0.0120	0.5726	0.729
25.6	0.729	0.5726	3.7822	0.0297	0.0119	0.5607	0.714
26	0.714	0.5607	3.7427	0.0294	0.0118	0.5490	0.699
26.4	0.699	0.5490	3.7033	0.0291	0.0116	0.5374	0.684
26.8	0.684	0.5374	3.6638	0.0288	0.0115	0.5258	0.670
27.2	0.670	0.5258	3.6244	0.0285	0.0114	0.5145	0.655
27.6	0.655	0.5145	3.5849	0.0282	0.0113	0.5032	0.641
28	0.641	0.5032	3.5455	0.0278	0.0111	0.4921	0.627
28.4	0.627	0.4921	3.5060	0.0275	0.0110	0.4810	0.612
28.8	0.612	0.4810	3.4665	0.0272	0.0109	0.4702	0.599
29.2	0.599	0.4702	3.4271	0.0269	0.0108	0.4594	0.585
29.6	0.585	0.4594	3.3876	0.0266	0.0106	0.4487	0.571
30	0.571	0.4487	3.3481	0.0263	0.0105	0.4382	0.558
30.4	0.558	0.4382	3.3087	0.0260	0.0104	0.4278	0.545
30.8	0.545	0.4278	3.2692	0.0257	0.0103	0.4176	0.532
31.2	0.532	0.4176	3.2297	0.0254	0.0101	0.4074	0.519
31.6	0.519	0.4074	3.1902	0.0251	0.0100	0.3974	0.506
32	0.506	0.3974	3.1507	0.0247	0.0099	0.3875	0.493
32.4	0.493	0.3875	3.1113	0.0244	0.0098	0.3777	0.481
32.8	0.481	0.3777	3.0718	0.0241	0.0097	0.3681	0.469
33.2	0.469	0.3681	3.0323	0.0238	0.0095	0.3585	0.457
33.6	0.457	0.3585	2.9928	0.0235	0.0094	0.3491	0.445
34	0.445	0.3491	2.9533	0.0232	0.0093	0.3399	0.433
34.4	0.433	0.3399	2.9138	0.0229	0.0092	0.3307	0.421
34.8	0.421	0.3307	2.8743	0.0226	0.0090	0.3217	0.410
35.2	0.410	0.3217	2.8347	0.0223	0.0089	0.3128	0.398
35.6	0.398	0.3128	2.7952	0.0220	0.0088	0.3040	0.387
36	0.387	0.3040	2.7557	0.0216	0.0087	0.2953	0.376
36.4	0.376	0.2953	2.7162	0.0213	0.0085	0.2868	0.365
36.8	0.365	0.2868	2.6767	0.0210	0.0084	0.2784	0.354
37.2	0.354	0.2784	2.6371	0.0207	0.0083	0.2701	0.344
37.6	0.344	0.2701	2.5976	0.0204	0.0082	0.2619	0.334
38	0.334	0.2619	2.5581	0.0201	0.0080	0.2539	0.323
38.4	0.323	0.2539	2.5185	0.0198	0.0079	0.2460	0.313
38.8	0.313	0.2460	2.4790	0.0195	0.0078	0.2382	0.303
39.2	0.303	0.2382	2.4394	0.0192	0.0077	0.2305	0.294
39.6	0.294	0.2305	2.3998	0.0188	0.0075	0.2230	0.284
40	0.284	0.2230	2.3603	0.0185	0.0074	0.2156	0.274
40.4	0.274	0.2156	2.3207	0.0182	0.0073	0.2083	0.265
40.8	0.265	0.2083	2.2811	0.0179	0.0072	0.2011	0.256
41.2	0.256	0.2011	2.2415	0.0176	0.0070	0.1941	0.247
41.6	0.247	0.1941	2.2020	0.0173	0.0069	0.1872	0.238
42	0.238	0.1872	2.1624	0.0170	0.0068	0.1804	0.230
42.4	0.230	0.1804	2.1228	0.0167	0.0067	0.1737	0.221
42.8	0.221	0.1737	2.0831	0.0164	0.0065	0.1672	0.213
43.2	0.213	0.1672	2.0435	0.0160	0.0064	0.1607	0.205
43.6	0.205	0.1607	2.0039	0.0157	0.0063	0.1545	0.197
44	0.197	0.1545	1.9643	0.0154	0.0062	0.1483	0.189
44.4	0.189	0.1483	1.9246	0.0151	0.0060	0.1422	0.181
44.8	0.181	0.1422	1.8850	0.0148	0.0059	0.1363	0.174
45.2	0.174	0.1363	1.8453	0.0145	0.0058	0.1305	0.166
45.6	0.166	0.1305	1.8057	0.0142	0.0057	0.1248	0.159
46	0.159	0.1248	1.7660	0.0139	0.0055	0.1193	0.152
46.4	0.152	0.1193	1.7263	0.0136	0.0054	0.1139	0.145
46.8	0.145	0.1139	1.6866	0.0132	0.0053	0.1086	0.138
47.2	0.138	0.1086	1.6469	0.0129	0.0052	0.1034	0.132
47.6	0.132	0.1034	1.6072	0.0126	0.0050	0.0983	0.125
48	0.125	0.0983	1.5674	0.0123	0.0049	0.0934	0.119
48.4	0.119	0.0934	1.5277	0.0120	0.0048	0.0886	0.113
48.8	0.113	0.0886	1.4879	0.0117	0.0047	0.0840	0.107
49.2	0.107	0.0840	1.4482	0.0114	0.0045	0.0794	0.101
49.6	0.101	0.0794	1.4084	0.0111	0.0044	0.0750	0.095
